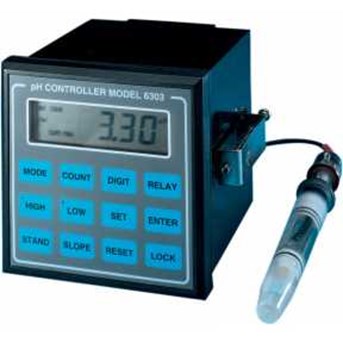

JENCO pH, ORP, Temperature In-line Controller 6303C

Description 1/ 4 DIN panel mount pH controller, microprocessor based with membrane type keypad and password protection. Meter has a programmable, reversible and isolated 4- 20 mA current output and dual SPDT relays. Connectors are a BNC and spade lug terminal blocks. ATC is a 10K thermistor or simulation resistor. Features a NEMA-4 type bezel for watertight seals against mounting panels. 115/ 230V AC. * High accuracy, reversible & isolated 4-20 mA current out * Set point security code protection * Dual output relays * Automatic/ manual temp. compensation * Dual output relays * Automatic/ manual temp. compensation * User programmable buffer recognition or pre-stored nbs buffers * Low drift & high stability * User friendly keypad format * CE approved version available * Power down memory backup * 1/ 4 DIN housing * User programmable relay hysteresis * Nema 4 bezel Specifications pH Range : -2.00 to 16.00 pH Resolution : 0.01 pH Accuracy : ± 0.01 pH ORP Range : -1999 to 1999mV Resolution : 1 mV Accuracy : ± 0.1% Temp. Range : -3.0 to 115.0 ° C Resolution : 0.1 ° C Accuracy : ± 0.2 ° C General * Input impedance: > 10exp( 13) ohms * Temp. compensation: Auto/ manual 0 to 115.0 ° C * Electrode buffer recognition: 4.00, 6.86, & 10.01 * Single point standardization: Eliminates electrode offset * Dual point standardization: Calculates/ compensates for electrode solpe & offse * Bumpless calibration: Controller output does not change during calibrati * Display: 0.5 inch high LCD * Lock: Set values connot be changed duless lock code is e * Relay set point hysteresis: User programmable * Relay output ( resistive load) : 5amp. at 115 VAC, 2.5 amp. at 230 VAC * CE certification: Effective january, 1998 * NEMA 4: Front of the mounting panel * Power failure backup: Yes * Dimensions: 1/ 4 DIN case * Weight: 680 g * Power source: 115 VAC, 230 VAC ± 15% 50/ 60 hz
